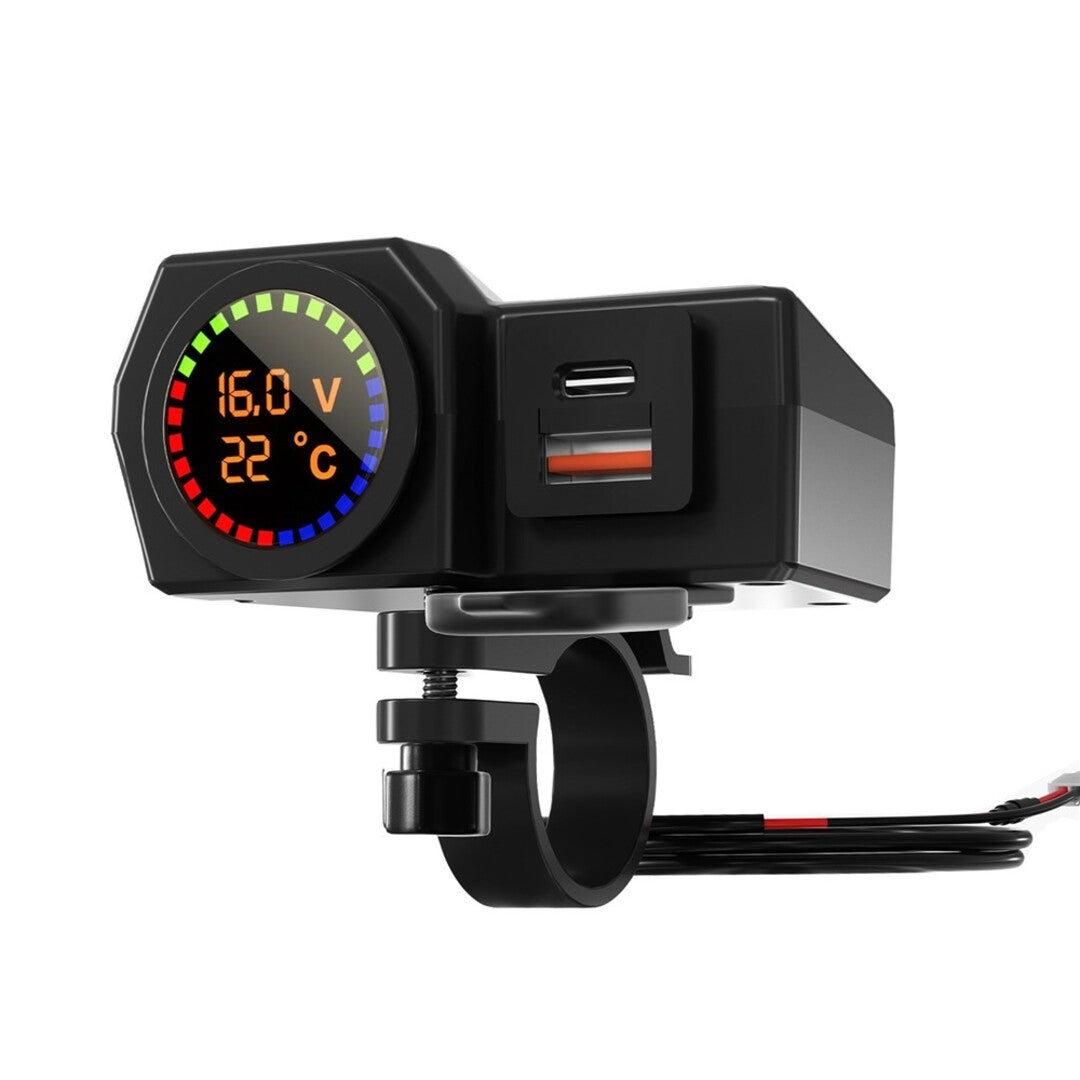

Universal Motorcycle Handlebar Mount Waterproof USB And Type C Charger 12-24V 5V/3.4A With Volt Meter And Temperature 1 Pc

• The product output supports USB port: DCP, FCP, AFC, QC2.0, QC3.0 fast charging protocol, Type-C PD port: supports BC1.2, for Apple, QC2.0, QC3.0, for Huawei FCP and SCP high voltage, for Samsung AFC and other fast charging protocols, can be used to power mobile phones, tablets, navigators, GPS, etc.

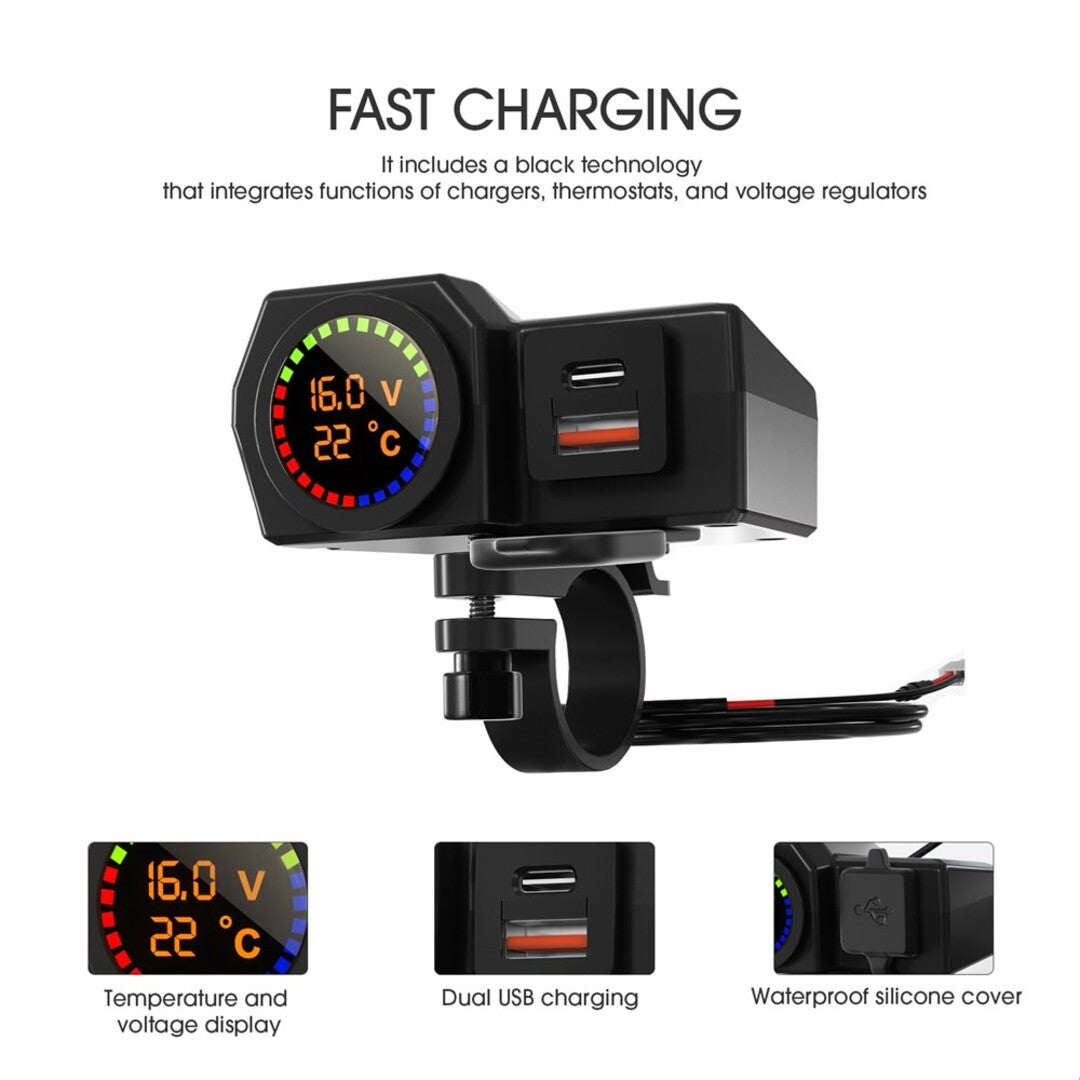

• The product is equipped with a color screen voltmeter, which can detect the usage of the car battery at any time and prevent potential safety hazards caused by a low battery, and also displays the temperature

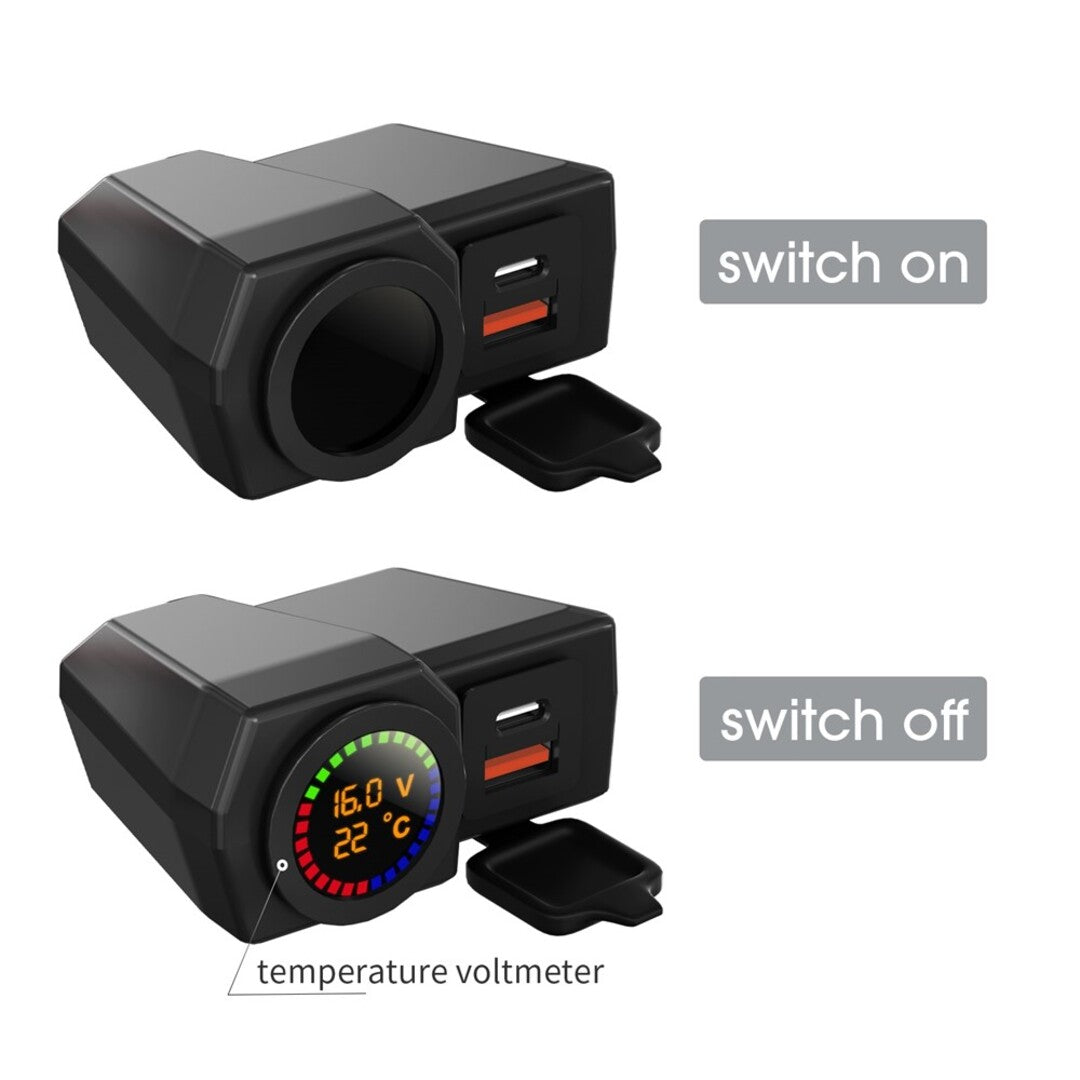

• The product has a power switch, which makes it easier to use.

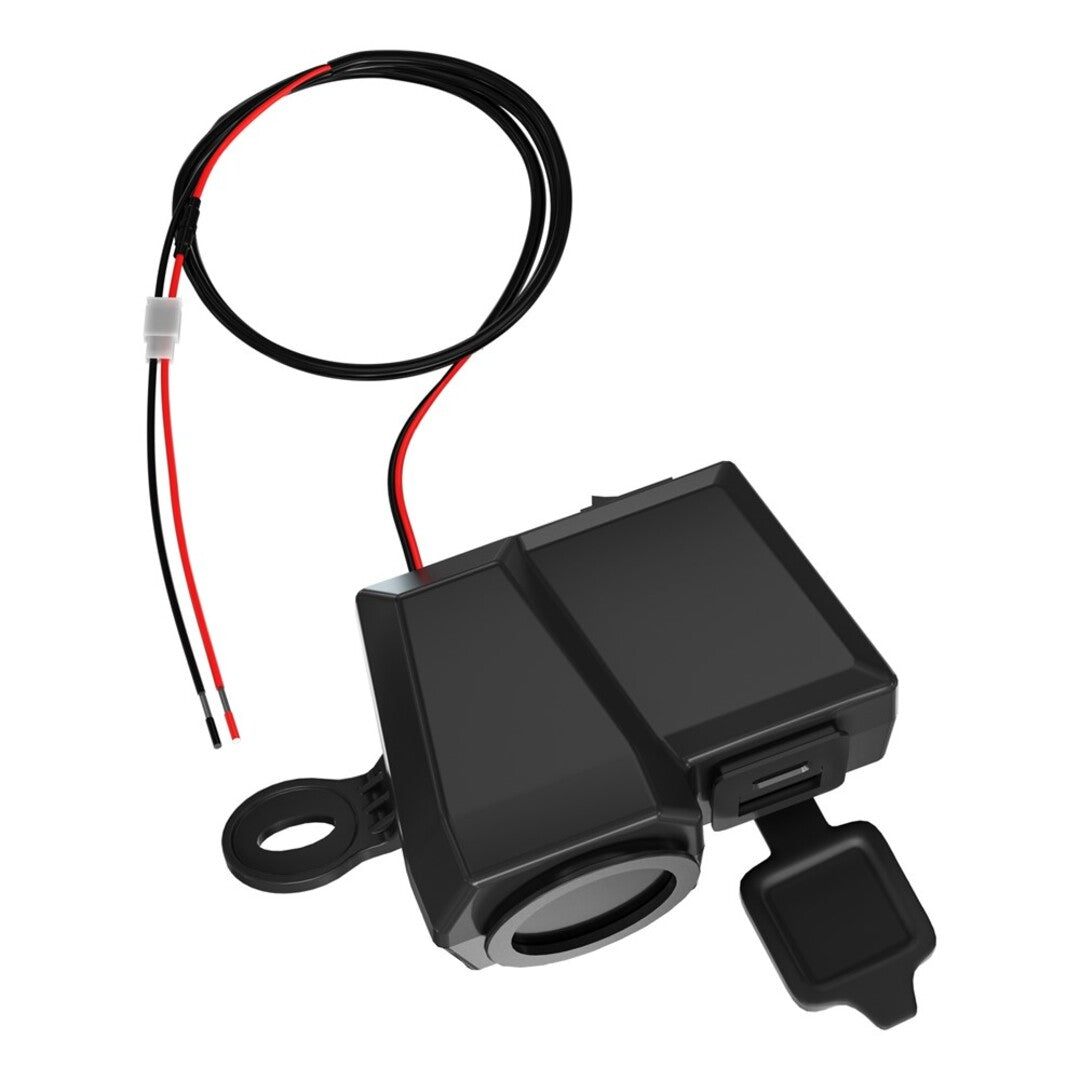

• The product uses a 70cm power cord, which fully meets the installation requirements, and can be installed directly on the power supply to reduce the difficulty of installation.
• And the wire has a white connector, even if it is connected to the battery, it can be connected and disconnected at will, which is convenient for power off

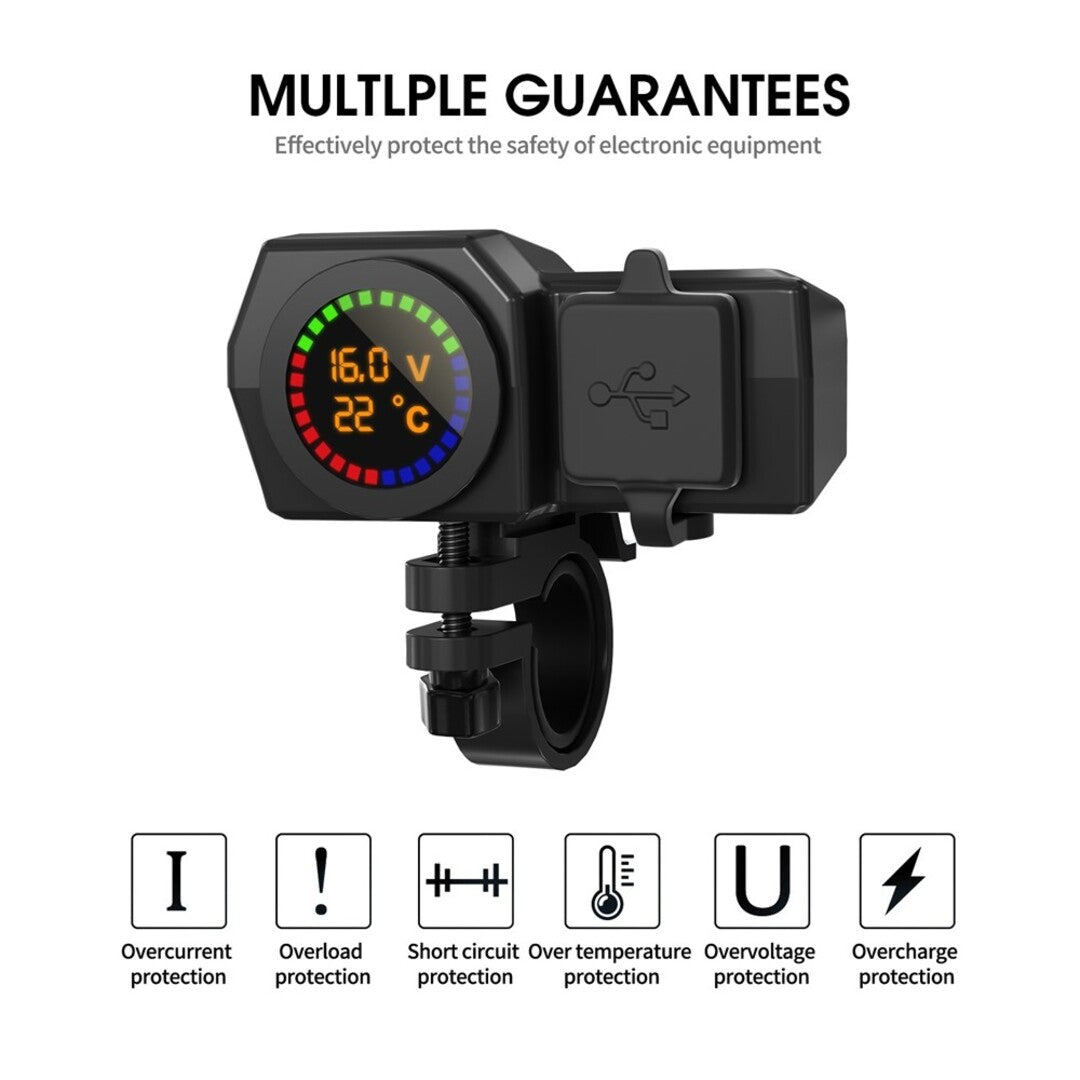

• The product has multiple protection functions, input overvoltage, undervoltage protection; output overcurrent, overvoltage, undervoltage, short circuit protection; reverse polarity protection; internal chip high temperature protection.

Wiring method:

• The red wire is connected to the positive pole of the battery +, and the black wire is connected to the negative pole of the battery -

Specifications:

• Product Model: CS-1747A2
• Product material: ABS flame retardant material
• Product net weight: 101g

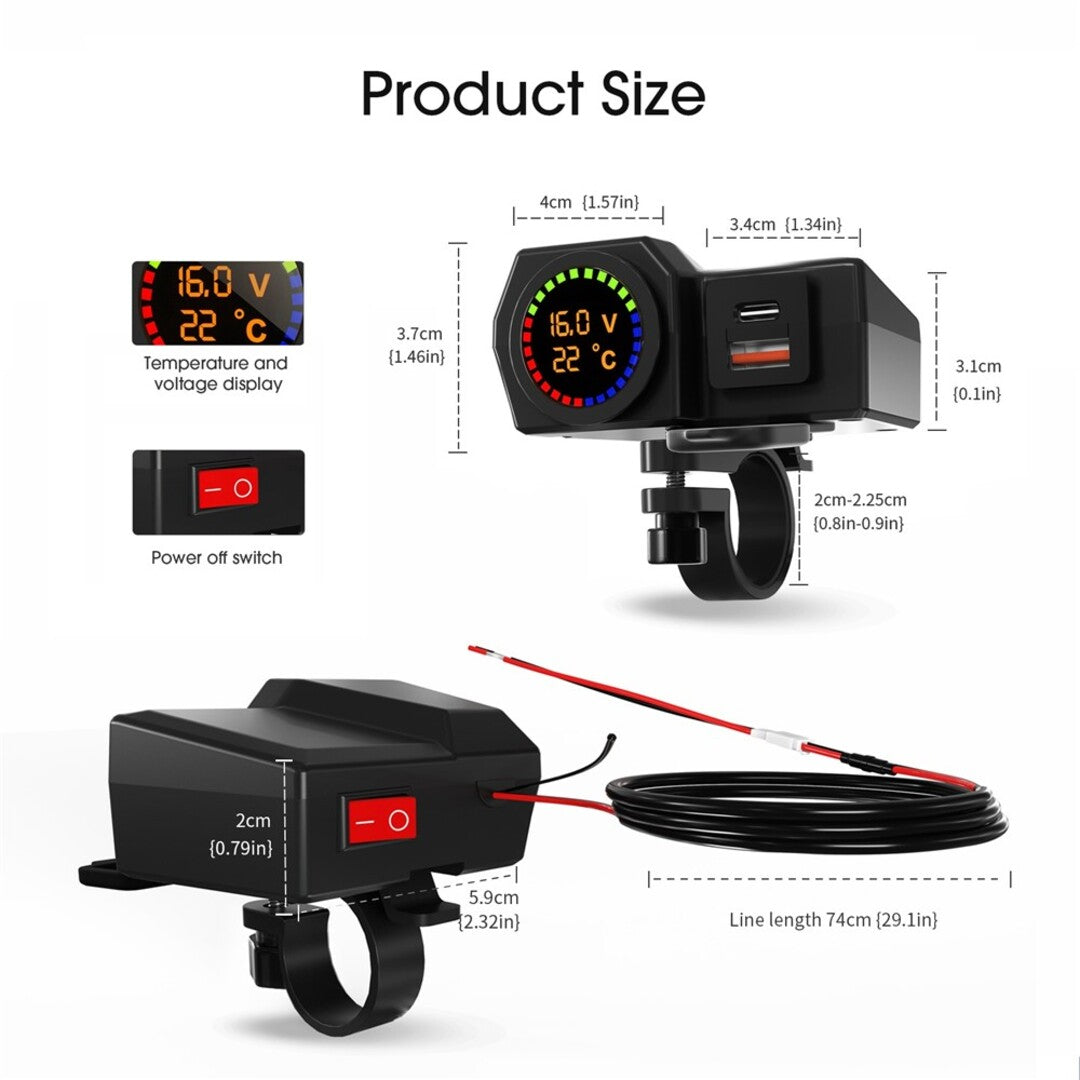

• Product cable length: 70cm

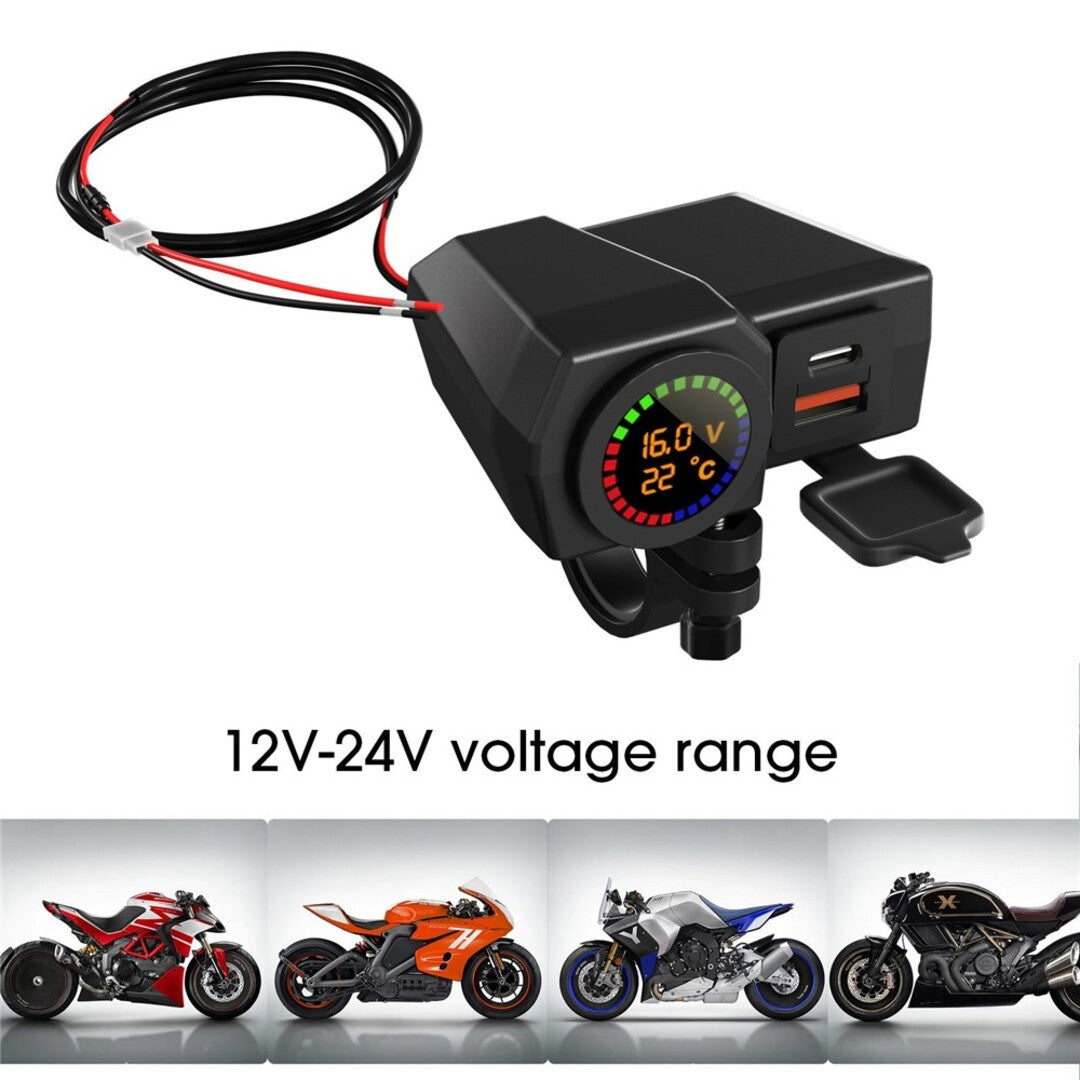

• Input voltage: DC12V-24V
• Product interface: USB port + Type-C port

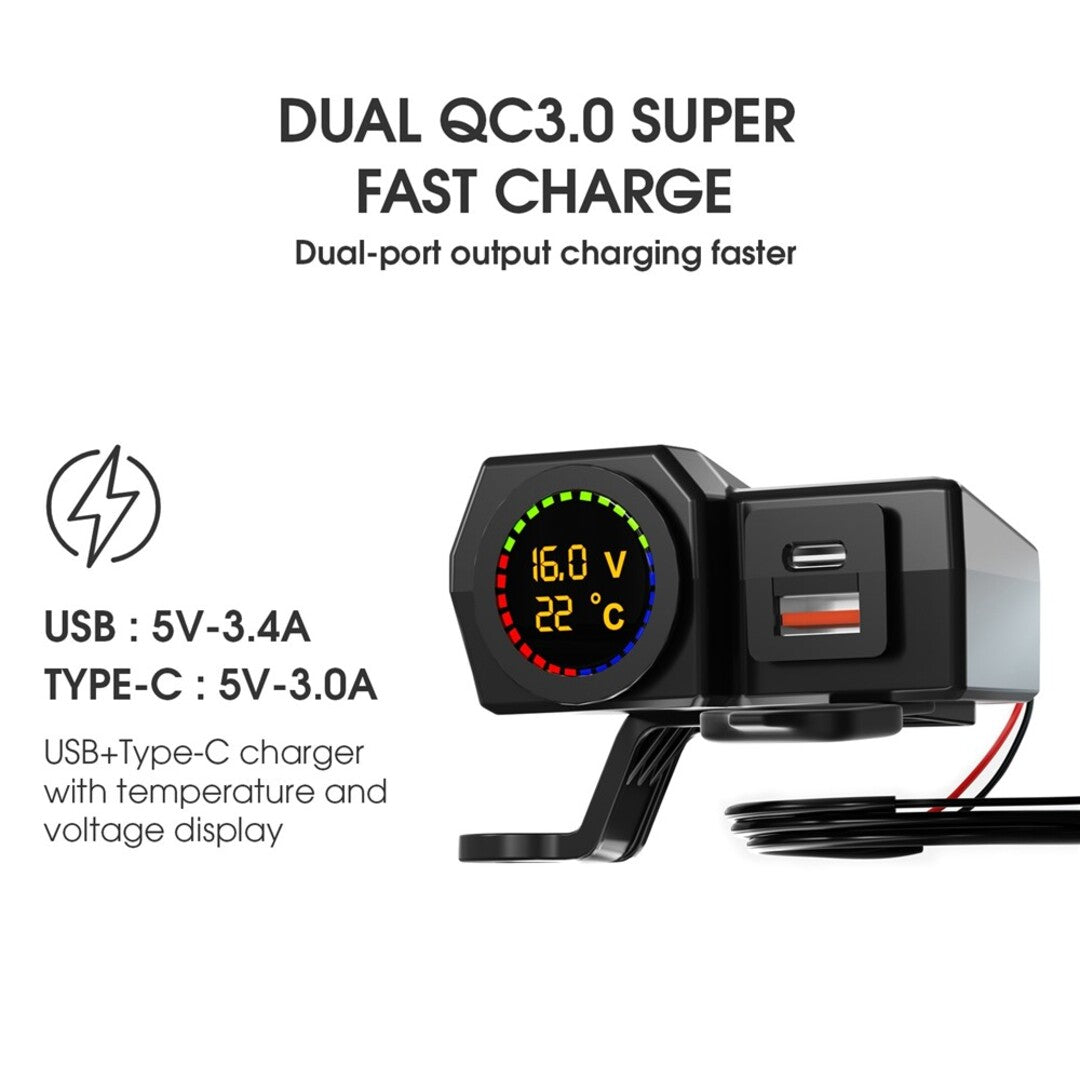

• Charging port output: USB: 5V/3.4A, 9V/2A, 12V/1.5A, Type-C: 5V/3A, 9V/2A, 12V/1.5A
• Voltmeter monitoring range: 6-30V
• Voltmeter color: orange + red, green and blue light circle
• Color screen voltage range: 10V-12.7V appears red, 12.8V-14.5V appears green, 14.6V-16V appears blue

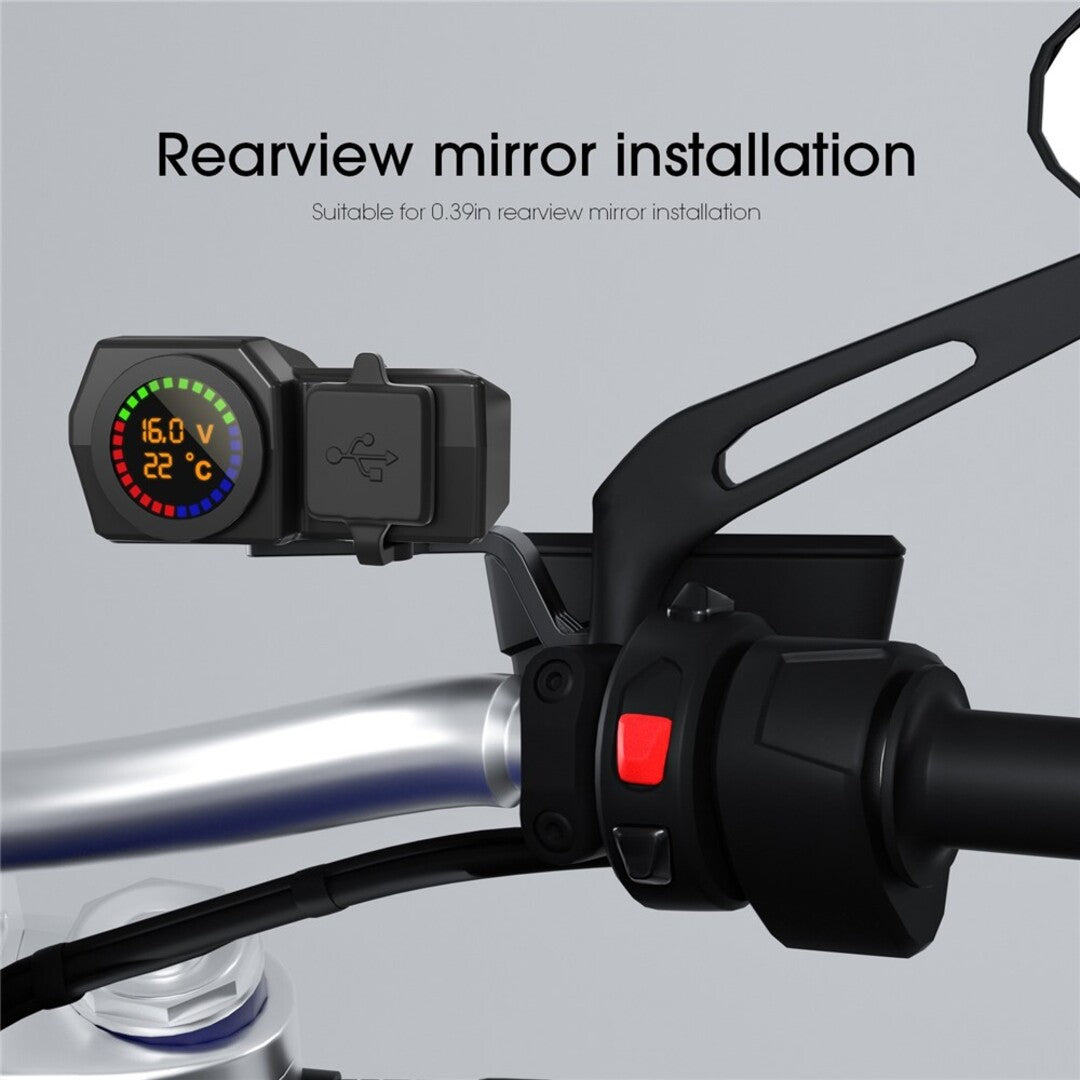

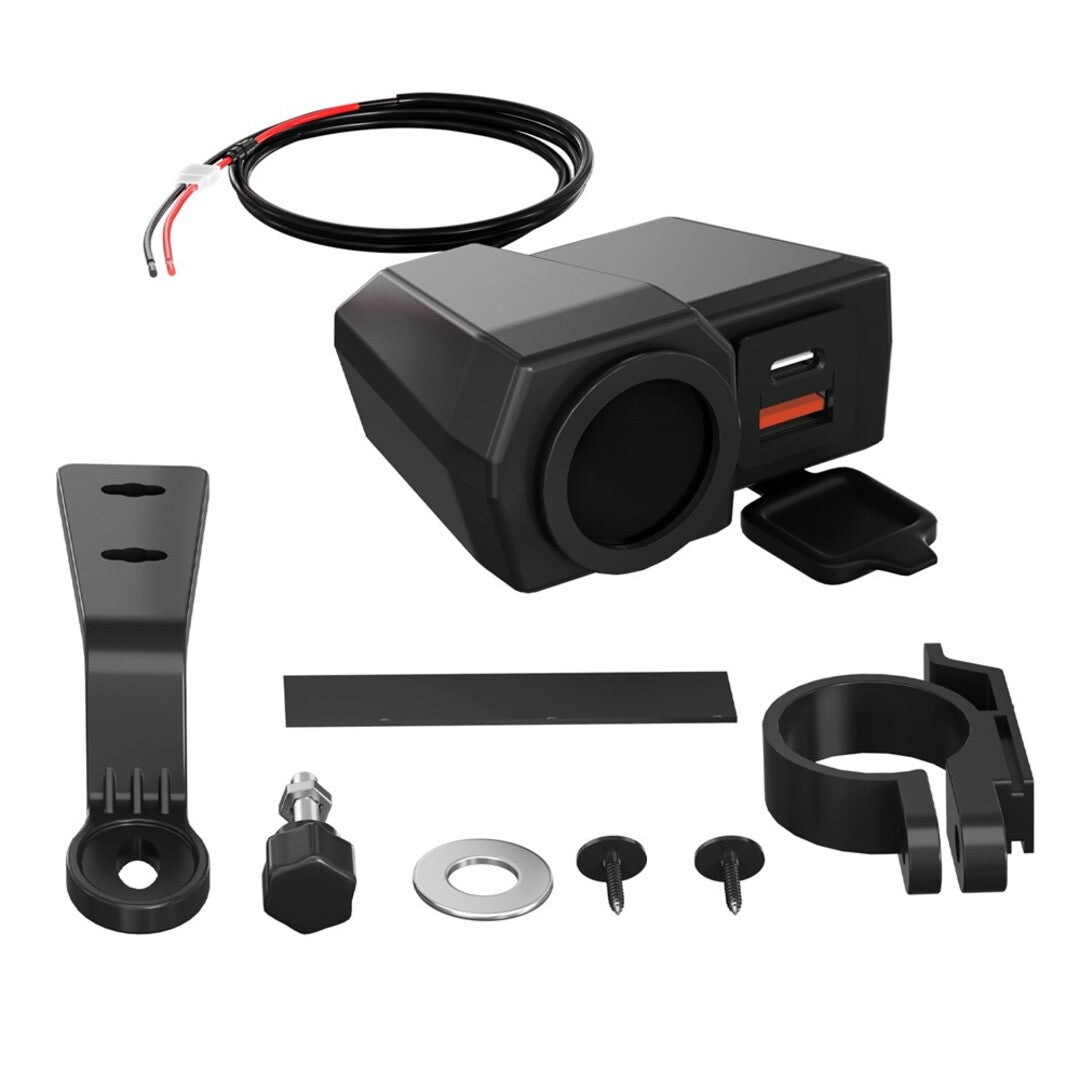

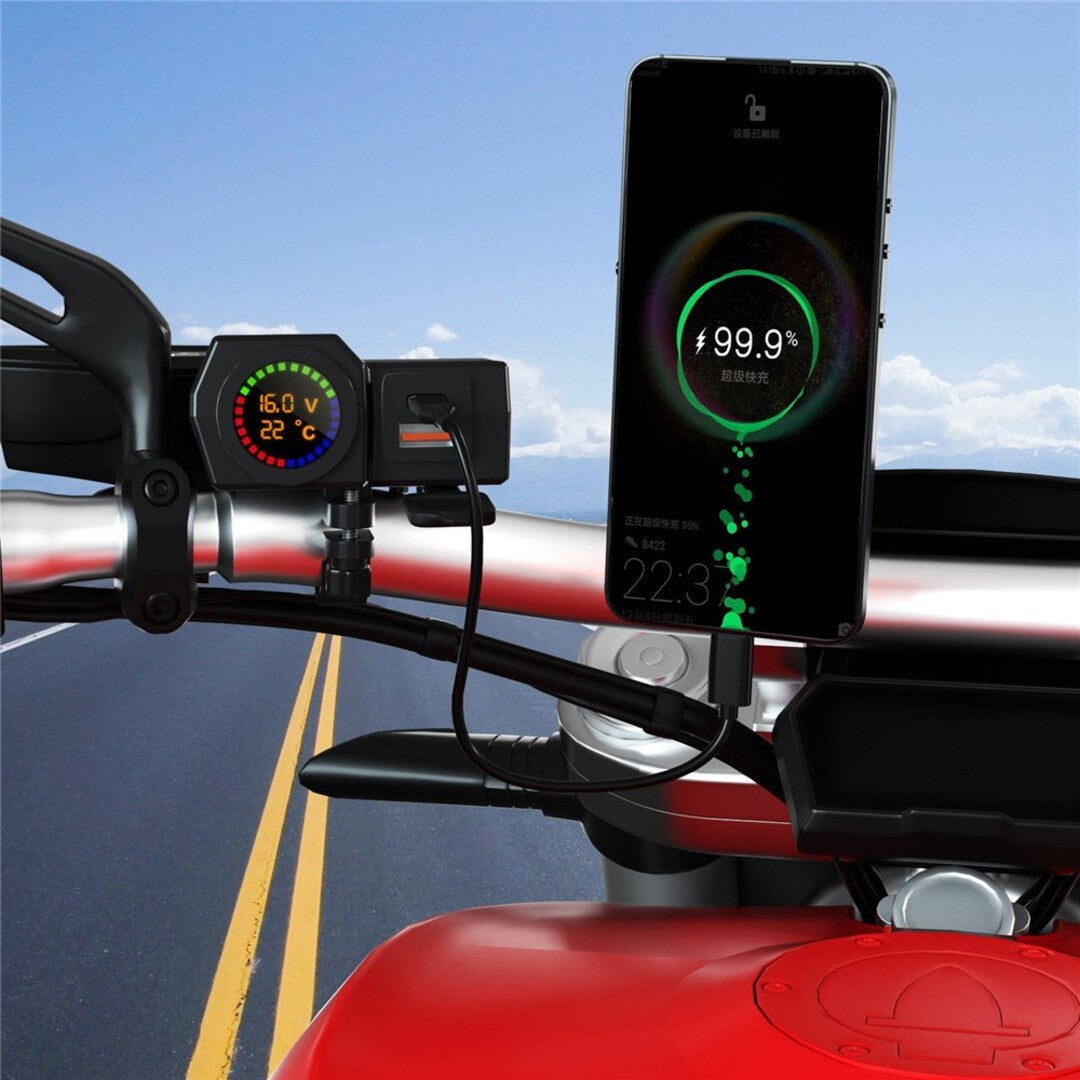

• Installation method: handlebar installation, rearview mirror installation
